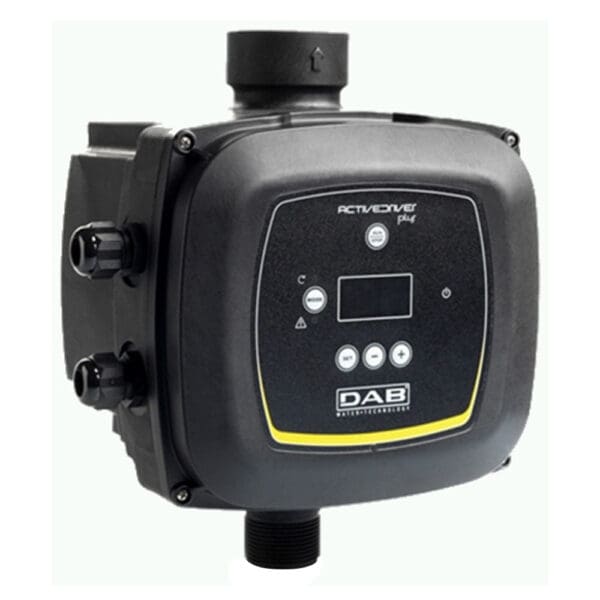

DAB: Inverter Active Driver Plus M/T 2.2 Pump Integrated Control System
DAB: Inverter Active Driver Plus M/T 2.2 Pump Integrated Control System
Original price was: KSh 179,300.KSh 152,000Current price is: KSh 152,000. inc. VAT
In stock
In stock
• Line voltage: 115V and 230V single-phase
• 400V three-phase
• Electric pump voltage: 115V and 230V single-phase, 230V and 400V three-phase
• Power supply frequency: 50 Hz – 60 Hz
• Installation: vertical and horizontal (M/M and M/T only)
• Maximum liquid temperature: 50°C
• Max operating temperature: 60°C
• Max flow rate: 15m3/h.
• Maximum working pressure: 13 bar
• Pressure regulation range: from 1 to 13 bar
• Suction diameter (DNA): 1 1/4” male
• Delivery diameter (DNM): 1 1/2” female
• Protection level: IP55
• Communication interface for sets: YES, an Active Driver Plus for each pump
• Non-return valve not required
Original price was: KSh 179,300.KSh 152,000Current price is: KSh 152,000. inc. VAT
In stock
In stock
Product Specifications
| TACC Item Ref | DWTRPMP109 |
|---|---|
| TACC Colour Ref | NA |
Payment Methods
- Delivery & Collection Options Collect in store or get free delivery anywhere in Kenya.
- Collect in Store Typically ready to collect within 24 working hours of order confirmation.
- Nairobi Delivery Estimated delivery within 1-2 working days. Free shipping on orders over KSh 10,000.
- Nationwide Delivery We deliver across Kenya. Estimated delivery within 3-5 working days depending on your location.
Active Driver Plus are inverters used for the control of hydraulic pumps. Their obvious fields of application are domestic, industrial, and agricultural constant pressure pumping systems.
The OLED display offers an extremely simple and intuitive graphic interface. Displaying or changing any parameters is extremely simple, which in turn also simplifies maintenance.
Installation is also very easy: the installation wizard asks the user for the parameters required for the configuration.
Active Driver Plus inverters provide a reduction of electric consumption, thanks to the inverter technology, whilst at the same time ensuring maximum comfort thanks to the constant pressure.
They are extremely versatile, as they do not require external sensors and non-return valves. There is in-fact a built-in pressure sensor, a flow switch, and a non-return valve.
Delivery: We offer shipping across Kenya. Free shipping is available on orders over KSh.10,000 within Nairobi. Orders to Nairobi are delivered within 48 hours, while upcountry deliveries may take up to 5 days.
Collect in Store: You can also choose to collect your order in-store, usually available within 24 hours (Monday to Friday) if placed by 3 pm, subject to stock availability.
Returns: You can request a return for store credit or exchange within 14 days of purchase. All returned items must be in new and unused condition, with all original packaging intact. We do not provide returns for any reduced items including during Sale or for any fabrics or customised items.
For full Delivery and returns details, please refer to our Delivery & Returns page.
