VA 65/180 (1”) M230/50 M9T12 EVO Y17 Circulation Pump With Wet Rotor Purpose
VA 65/180 (1”) M230/50 M9T12 EVO Y17 Circulation Pump With Wet Rotor Purpose
Original price was: KSh 19,500.KSh 16,500Current price is: KSh 16,500. inc. VAT
In stock
In stock
• Operating range: from 0.5 to 3,6 m3/h with head up to 6 metres.
• Pumped liquid temperature range: from -10°C to 110°C.
• Pumped liquid: clean, free from solids and mineral oils, non viscous,
chemically neutral, close to the characteristics of water (max 30% glycol).
• Maximum operating pressure: 10 bar (1000 kPa).
• Minimum suction pressure: the values are given in the relative tables.
• Protection level: corresponding to IP 44
• Insulation class: F
• Cable grommet: PG 11
• Special executions on requests: alternative voltages and/or frequencies
Original price was: KSh 19,500.KSh 16,500Current price is: KSh 16,500. inc. VAT
In stock
In stock
Product Specifications
| TACC Item Ref | DWTRPMP87 |
|---|---|
| TACC Colour Ref | NA |
Payment Methods
- Delivery & Collection Options Collect in store or get free delivery anywhere in Kenya.
- Collect in Store Typically ready to collect within 24 working hours of order confirmation.
- Nairobi Delivery Estimated delivery within 1-2 working days. Free shipping on orders over KSh 10,000.
- Nationwide Delivery We deliver across Kenya. Estimated delivery within 3-5 working days depending on your location.

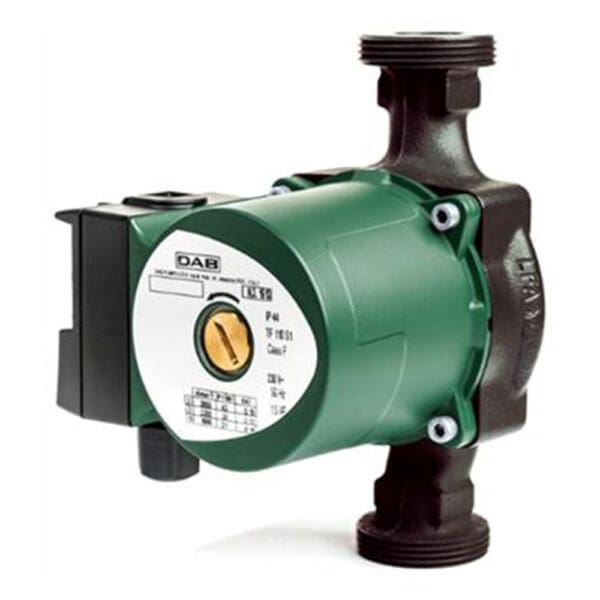

Pump for hot water circulation in domestic central heating and air conditioning systems of the closed circuit pressurized type or open circuit type. Enbloc body composed of hydraulic section in cast iron and wet rotor motor. Motor casing in die cast aluminium. Impeller in technopolymer. Motor shaft in hardened stainless steel held in graphite bearings lubricated by the pumping medium.
Rotor protective jacket, stator jacket, and closing flange in stainless steel. Ceramic thrust ring, ethylene-propylene seal rings and brass air breather plug. The two-pole asynchronous wet-rotor motor is resistance protected and does not
require any form of overload protection.
